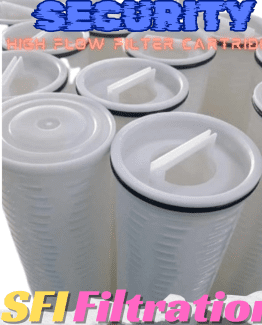

High Flow Filter Cartridge 20 inch
STASIUN FILTER INDONESIA adalah importir distributor agen dan supplier High Flow Filter Cartridge 20 inch terlengkap menyediakan berbagai kebutuhan spare part water treatment untuk keperluan industri dengan price harga terbaik
SFI HFPC Series is made of diameter 6 ” (152.4mm) , single open end, without or and with inner core, inside to outside flow direction.
Product Specifications Filter High Flow
Media/Support/Cage: Polypropylene
End caps: Polypropylene
O-rings: EPDM, Silicone, Buna-N, Viton
Micron ratings: 1 – 100 μm
Dimensions Cartridge High Flow
Nominal lengths : 20″, 40″, 60″
Outside diameter : 6.0″ (15.2 cm)
Surface area:
24 ft 2. (2.2 m2) per 20″ elementt
49 ft 2. (4.6 m2) per 40″ element
73 ft 2. (6.8 m2) per 60″ element
Operating Parameters
Maximum operating temperature:
77°F @ 50 psid (25°C @ 3.4 bar)
Recommended changeout differential pressure: 35 psid (2.4 bar)
Maximum flow rates :
60″ element up to 500 GPM (1892 lpm)
40″ element up to 350 GPM (1325 lpm)
20″ element up to 175 GPM (662 lpm)
SFI HFPC high flow filter Pall Replacement provides better protection for RO membrane than melt blown and string wound sediment filter cartridges.
